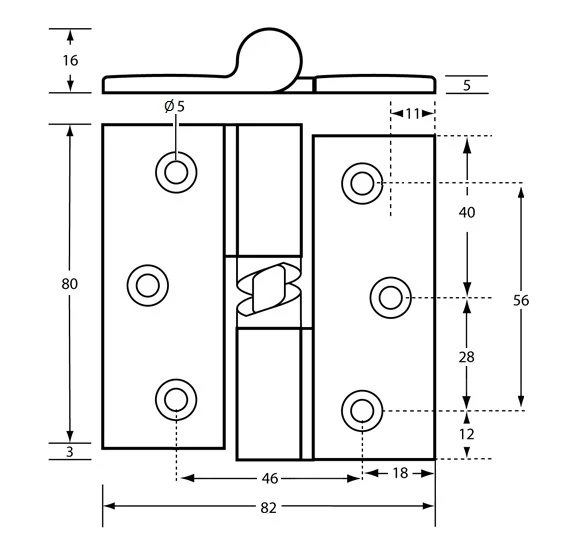

106 Gravity Hinge - Visible Fix
Specification
| Material | Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft Nylon Inserts |
| Finish |
SCP: Satin Chrome Plate BCP: Bright Chrome Plate (Hold Open Available Only) |
| Mounting | Screw Fix |
| Minimum Hinge Clearance For Lift-Off Hinges | 30mm |
| Specify |
106_LHHC: Left Hand, Hold Closed. Assists door to move towards Hold Closed position 106_LHHO: Left Hand, Hold Open. Assists door to move towards Hold Open position 106_RHHC: Right Hand, Hold Closed. Assists door to move towards Hold Closed position 106_RHHO: Right Hand, Hold Open. Assists door to move towards Hold Open position |
| Features | Gravity-assisted door opening/door closing with lift-off capability. |
| Load Rating | 15Kg per hinge |
|
For optimum performance - Note: 3 Hinges per door is recommended to prevent door bowing |
|
| Note: All Hinges Are Available With Or Without Fixings. Please Nominate Your Requirements At The Time Of Ordering. | |
| Disclaimer | Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below. |
Specification
| Material | Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft Nylon Inserts |
| Finish |
SCP: Satin Chrome Plate BCP: Bright Chrome Plate (Hold Open Available Only) |
| Mounting | Screw Fix |
| Minimum Hinge Clearance For Lift-Off Hinges | 30mm |
| Specify |
106_LHHC: Left Hand, Hold Closed. Assists door to move towards Hold Closed position 106_LHHO: Left Hand, Hold Open. Assists door to move towards Hold Open position 106_RHHC: Right Hand, Hold Closed. Assists door to move towards Hold Closed position 106_RHHO: Right Hand, Hold Open. Assists door to move towards Hold Open position |
| Features | Gravity-assisted door opening/door closing with lift-off capability. |
| Load Rating | 15Kg per hinge |
|
For optimum performance - Note: 3 Hinges per door is recommended to prevent door bowing |
|
| Note: All Hinges Are Available With Or Without Fixings. Please Nominate Your Requirements At The Time Of Ordering. | |
| Disclaimer | Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below. |
$13.40
106 Gravity Hinge - Visible Fix—
$13.40
Description
Specification
| Material | Diecast Zinc, Alloy ZP3 #304 Stainless Steel Shaft Nylon Inserts |
| Finish |
SCP: Satin Chrome Plate BCP: Bright Chrome Plate (Hold Open Available Only) |
| Mounting | Screw Fix |
| Minimum Hinge Clearance For Lift-Off Hinges | 30mm |
| Specify |
106_LHHC: Left Hand, Hold Closed. Assists door to move towards Hold Closed position 106_LHHO: Left Hand, Hold Open. Assists door to move towards Hold Open position 106_RHHC: Right Hand, Hold Closed. Assists door to move towards Hold Closed position 106_RHHO: Right Hand, Hold Open. Assists door to move towards Hold Open position |
| Features | Gravity-assisted door opening/door closing with lift-off capability. |
| Load Rating | 15Kg per hinge |
|
For optimum performance - Note: 3 Hinges per door is recommended to prevent door bowing |
|
| Note: All Hinges Are Available With Or Without Fixings. Please Nominate Your Requirements At The Time Of Ordering. | |
| Disclaimer | Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below. |
