600mm Straight Grab Rail in Polished Stainless Steel

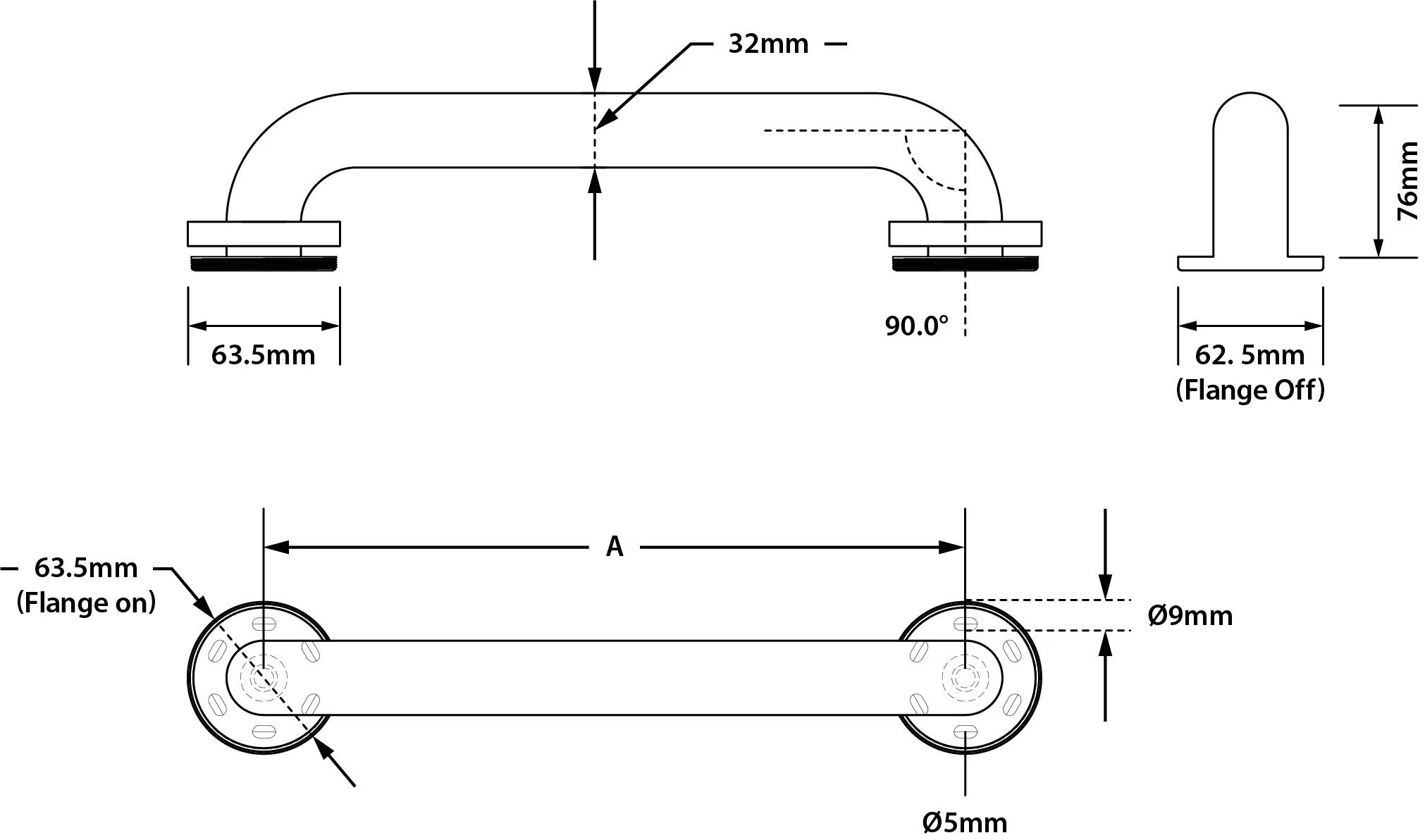

Specification
| Material | #304 Stainless Steel - 32mmØ |
| Finish | Polished Stainless Steel |
| Mounting | Concealed Fix - 78mmØ Mount |
| Dimensions | 600mm C to C |
| Features | Concealed Fix screw-on Flange Cover |
| Also Available |
ML_GR300X32_POLISHED - 300mm C to C ML_GR450X32_POLISHED- 450mm C to C ML_GR750X32_POLISHED - 750mm C to C ML_GR900X32_POLISHED - 900mm C to C ML_GR1200X32_POLISHED - 1200mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
Specification
| Material | #304 Stainless Steel - 32mmØ |
| Finish | Polished Stainless Steel |
| Mounting | Concealed Fix - 78mmØ Mount |
| Dimensions | 600mm C to C |
| Features | Concealed Fix screw-on Flange Cover |
| Also Available |
ML_GR300X32_POLISHED - 300mm C to C ML_GR450X32_POLISHED- 450mm C to C ML_GR750X32_POLISHED - 750mm C to C ML_GR900X32_POLISHED - 900mm C to C ML_GR1200X32_POLISHED - 1200mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
Description
Specification
| Material | #304 Stainless Steel - 32mmØ |
| Finish | Polished Stainless Steel |
| Mounting | Concealed Fix - 78mmØ Mount |
| Dimensions | 600mm C to C |
| Features | Concealed Fix screw-on Flange Cover |
| Also Available |
ML_GR300X32_POLISHED - 300mm C to C ML_GR450X32_POLISHED- 450mm C to C ML_GR750X32_POLISHED - 750mm C to C ML_GR900X32_POLISHED - 900mm C to C ML_GR1200X32_POLISHED - 1200mm C to C |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
