6 Mm Copper Pigtail 7/16″-24 I/flare Xpol 1000 Mm+cap

Product image 1

6 Mm Copper Pigtail 7/16″-24 I/flare Xpol 1000 Mm+cap

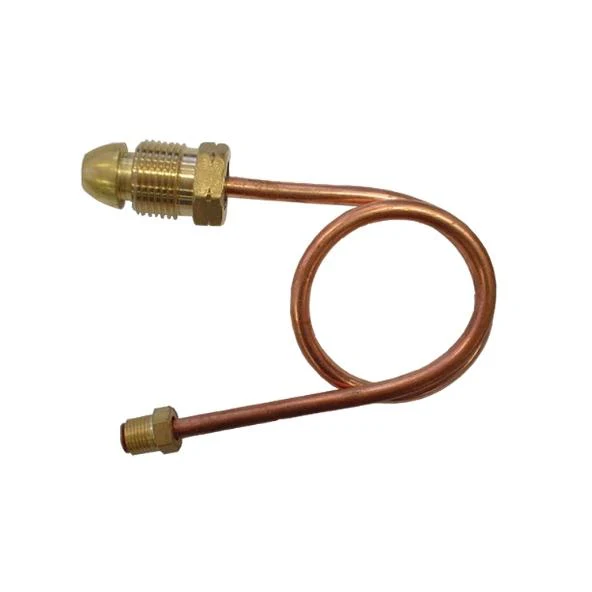

Copper gas pigtail with 7/16″ Inverted Flare x POL connections, 6mm diameter and 1000mm long. Comes with cap. For use with LPG regulator connection to cylinders.

Features

AGA Approved
High pressure, low temperature hose type
Maximum working pressure 2600 kPa
Working temperature -20°C to +65°C
Approved to AS/NZS 1869:2012

Specifications

Product Number 6360512
AGA Approval Number 6223
Max. Working Pressure (kPa) 2600
Min Working Temperature -20
Max. Working Temperature 65
Brands Bromic
Thread Size 7/16"
Thread Type Inverted Flare, POL
Connector M
Fuel type LPG
Material Copper
Hose Length(mm) 1000
Gas Hose Class C
Inlet Connection (Connector) Inverted Flare
Inlet Connection (Thread Size) 5/16"-24
Outlet Connection (Connector) M
Outlet Connection (Thread Type) POL

Copper gas pigtail with 7/16″ Inverted Flare x POL connections, 6mm diameter and 1000mm long. Comes with cap. For use with LPG regulator connection to cylinders.

Features

AGA Approved
High pressure, low temperature hose type
Maximum working pressure 2600 kPa
Working temperature -20°C to +65°C
Approved to AS/NZS 1869:2012

Specifications

Product Number 6360512
AGA Approval Number 6223
Max. Working Pressure (kPa) 2600
Min Working Temperature -20
Max. Working Temperature 65
Brands Bromic
Thread Size 7/16"
Thread Type Inverted Flare, POL
Connector M
Fuel type LPG
Material Copper
Hose Length(mm) 1000
Gas Hose Class C
Inlet Connection (Connector) Inverted Flare
Inlet Connection (Thread Size) 5/16"-24
Outlet Connection (Connector) M
Outlet Connection (Thread Type) POL

$19.39
6 Mm Copper Pigtail 7/16″-24 I/flare Xpol 1000 Mm+cap—
$19.39

Description

Copper gas pigtail with 7/16″ Inverted Flare x POL connections, 6mm diameter and 1000mm long. Comes with cap. For use with LPG regulator connection to cylinders.

Features

AGA Approved
High pressure, low temperature hose type
Maximum working pressure 2600 kPa
Working temperature -20°C to +65°C
Approved to AS/NZS 1869:2012

Specifications

Product Number 6360512
AGA Approval Number 6223
Max. Working Pressure (kPa) 2600
Min Working Temperature -20
Max. Working Temperature 65
Brands Bromic
Thread Size 7/16"
Thread Type Inverted Flare, POL
Connector M
Fuel type LPG
Material Copper
Hose Length(mm) 1000
Gas Hose Class C
Inlet Connection (Connector) Inverted Flare
Inlet Connection (Thread Size) 5/16"-24
Outlet Connection (Connector) M
Outlet Connection (Thread Type) POL
