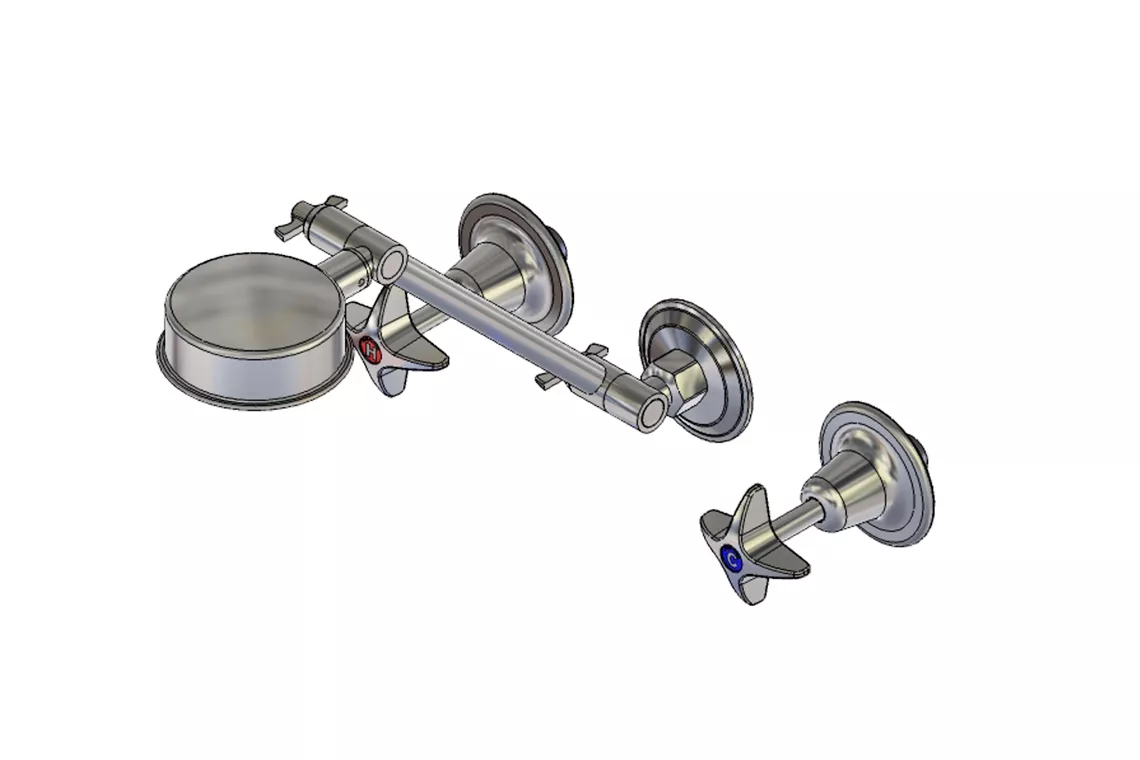

School Pattern Recessed Set With SP263 Shower
Dimensional Drawing - Document
Enware’s vandal resistent School Pattern tapware features an easy to clean design. Constructed from dezincification resistant (DR) brass with durable chrome plated finish. The handle features an internal locking ring securing it to the spindle and requires a
special key to remove. For areas there there is a higher risk of vandalism choose the School Pattern non-removable (VPN), which utilises a handle permanently fixed to the spindle.
- High quality construction from dezincification resistant (DR) brass with durable chrome plated finish
- Vandal-resistant internal locking ring secures the handle, special key (supplied) required to release
- Serviceable with all wearing components replaceable, thus providing an even longer life
- WaterMark: AS/NZS 3718 WMKA 1583 SAI Global
- WELS: 3 Star Rating
PRESSURE
| Ceramic Disc Maximum Static Pressure | 800kPa |
| Ceramic Disc Minimum-Maximum Working Pressure (AS/NZS 3500) | 50-500kPa |
TEMPERATURE
| Ceramic Disc Maximum Working Temperature | 85C |
JUMPER VALVE
| Jumper Valve Maximum Static Pressure | 1200kPa |
| Jumper Valve Maximum Working Temperature | 95C |
| Jumper Valve Minimum-Maximum Working Pressure (AS/NZS 3500)* | 30-500kPa |
Dimensional Drawing - Document
Enware’s vandal resistent School Pattern tapware features an easy to clean design. Constructed from dezincification resistant (DR) brass with durable chrome plated finish. The handle features an internal locking ring securing it to the spindle and requires a
special key to remove. For areas there there is a higher risk of vandalism choose the School Pattern non-removable (VPN), which utilises a handle permanently fixed to the spindle.
- High quality construction from dezincification resistant (DR) brass with durable chrome plated finish
- Vandal-resistant internal locking ring secures the handle, special key (supplied) required to release
- Serviceable with all wearing components replaceable, thus providing an even longer life
- WaterMark: AS/NZS 3718 WMKA 1583 SAI Global
- WELS: 3 Star Rating
PRESSURE
| Ceramic Disc Maximum Static Pressure | 800kPa |
| Ceramic Disc Minimum-Maximum Working Pressure (AS/NZS 3500) | 50-500kPa |
TEMPERATURE
| Ceramic Disc Maximum Working Temperature | 85C |
JUMPER VALVE
| Jumper Valve Maximum Static Pressure | 1200kPa |
| Jumper Valve Maximum Working Temperature | 95C |
| Jumper Valve Minimum-Maximum Working Pressure (AS/NZS 3500)* | 30-500kPa |
