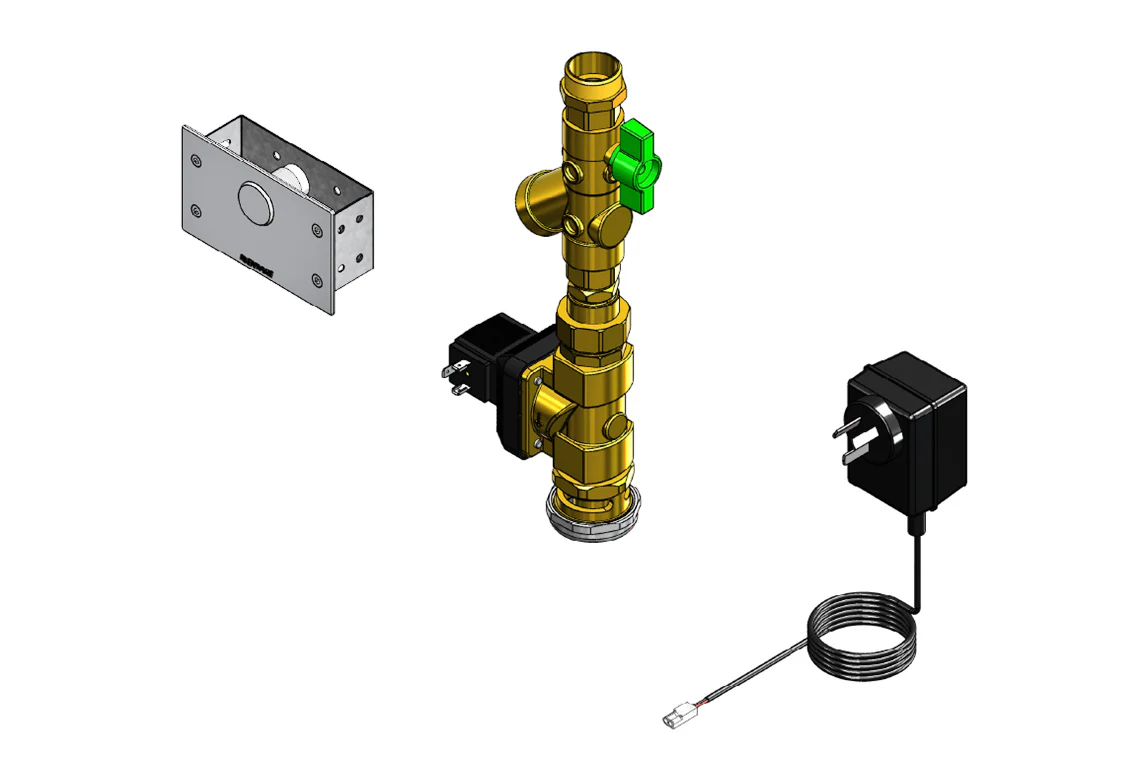

Touch-Activated Single Flush WC Flushing System – Duct Access
Enware’s WC flushing systems provide a neat and reliable flushing solution using piezoelectric technology particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate pan delivers a 5.5 litre flush.
Best suited for duct style installation (Flush unit and activation plate MUST be seperated).
Semi concealed installation with a stainless steel panel and security screws. Shut off valve, filter and airbreak included. Suitable for AS1428.1 applications.
- Piezo touch button control
- Mains power 24V
- Compact face plate
- Vandal resistant torx screws
- WMTS-020 compliant
- 3-year warranty
- WaterMark: WMTS-020 C of C 40116 Global-Mark
- WELS: 1 Star Rating
INLET & OUTLET

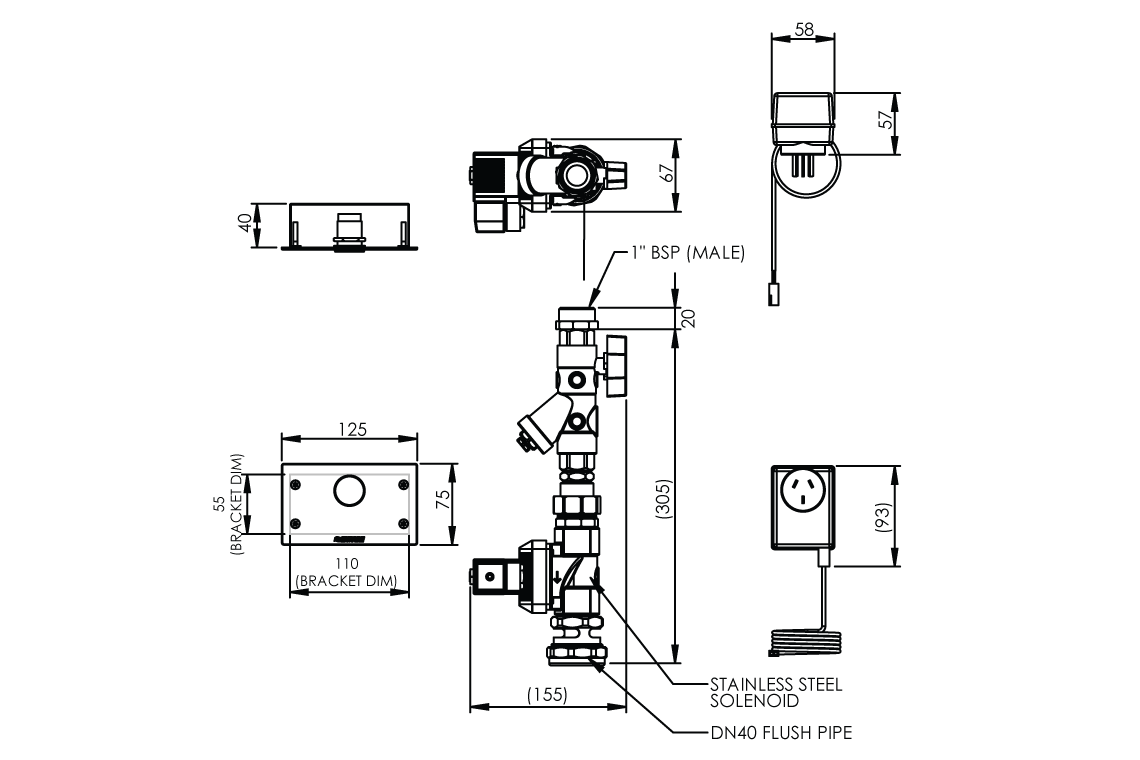

| Connection | Inlet - 1" BSP (25mm) |
PRESSURE
| Dual Flush Water Supply Working Pressure | 300kPa |
| Single Flush Water Supply Working Pressure | 250kPI |
FLUSH
| Flush Pipe | 700mm (+/- 100mm) of 1 1/2" (40mm) flush pipe is required below the air break. |
FLOW RATE
| Kv Factor | 8.3m3/h |
POWER SOURCE
| Mains Powered | 24V AC Transformer |
SUPPLY LINE
| Minimum Water Supply Line Size | 1" (25mm) copper pipe |
